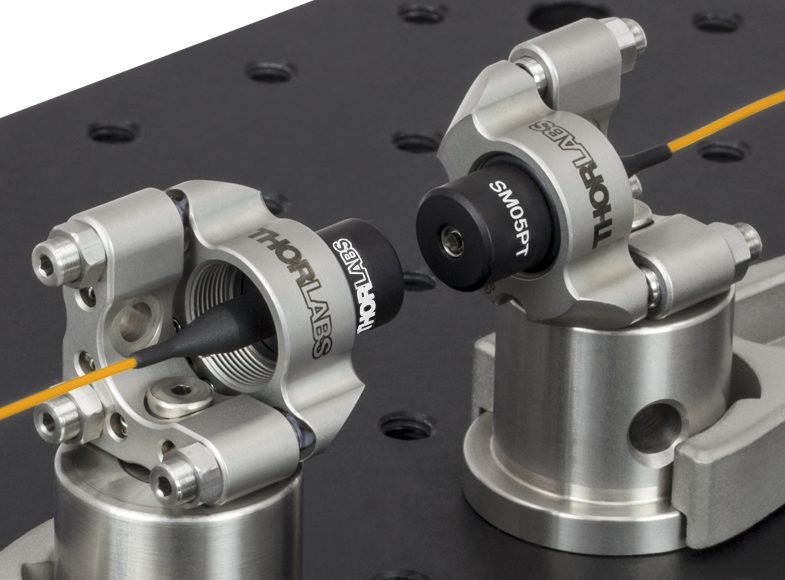

Fiber Component
FiberPorts can be used to provide a stable platform for coupling light into and out of FC/PC, FC/APC, or SMA terminated fiber with five or six directional adjustments. The Fiber Launch Platforms are ideal for coupling a free space laser into a single mode, multimode, or polarization-maintaining fiber. The U-Benches are based on the stable FiberBench platform with a FiberPort on either end. They allow for easy access to the optical beam and are ideal for fiber-to-fiber applications that incorporate multiple components and require the utmost in stability. Thorlabs also offers a range of fixed and adjustable collimation packages for collimating a laser beam from the end of an FC/PC, FC/APC, or SMA connectorized fiber while maintaining diffraction-limited performance at the design wavelength.
Fiber Launch Systems
- Ideal for Ø150 to Ø341 μm Bare Fibers
- Variable Pressure Clamping Arm
- 4 mm Travel Adjustment Range
- Includes 300 μm Fine Adjustment at 50 µm per Revolution
- RMS-Threaded Bracket for Objective Lenses
| Specification | |
| Travel | 4 mm |
| Cross Talk | <20 µm/mm |
| Load Capacity | 2.2 lbs (1 kg) |
| Thermal Stability | 1 µm/°C |
| Weight | 1.65 lbs (750 g) |
| Deck Height | 2.46″ (62.5 mm) |
| Optical Axis Height | 2.95″ (75 mm) |
| Fiber Diameter Range | 150 µm to 341 µm |
| Differential Adjusters | |
| Coarse Adjustment | 0.5 mm/rev |
| Fine Adjustment (with Vernier) | 50 µm/rev (300 µm Range) |
GRIN Fiber Optic Collimators
- Couple and Collimate Light Into or Out of a Fiber
- Pigtailed to Graded-Index Multimode Fiber with an Optional FC/PC or FC/APC Connector
- Lens Surface is AR Coated for the Specified Wavelength Range
- Ø1.8 mm Clear Aperture
- 300 mW Maximum Power
| Common Specifications | |
| Collimator Pair Performance | |
| Working Distancea | 15 ± 5 mm |
| Pair Insertion Lossb | ≤0.35 dB |
| Individual Performance | |
| Insertion Lossc | ≤0.35 dB |
| Return Lossc | >60 dB Typ., 30 dB Max |
| General | |
| Operating Wavelength Range | Alignment Wavelength ± 40 nm |
| Clear Aperture | Ø1.8 mm |
| Optical Power | 300 mW (Max) |
| GRIN Lens Material | Oxide Glass |
| Fiber Type | Corning PI360 Graded Index, 1 m Long |
| Fiber NA | 0.275 ± 0.015 |
| Core Diameter | Ø62.5 ± 3.0 µm |
| Cladding Diameter | Ø125 ± 2.0 µm |
| Fiber Jacket | Ø900 µm Tubing (Orange) |
| Tensile Load | 5 N |
| Operating Temperature | -5 to 70°C |
| Storage Temperature | -40 to 85 °C |
FiberBench Polarization Modules
- Free-Space, Fiber-to-Fiber Coupling System Utilizing Off-Axis Parabolic (OAP) Mirrors
- OAP Mirrors Provide High Reflectance, High NA, and Achromatic Performance Over Reflection Band
- Protected Silver Coating (450 nm – 20 µm) for Broadband Sources
- UV-Enhanced Aluminum Coating (250 nm – 450 nm) for UV Sources
- FC/PC or SMA Connectors
- FC/PC Versions (FOFMF) Accepts Both 2.2 mm Wide Key and 2.0 mm Narrow Key Connectors
- SMA Versions (FOFMS) are Designed for SMA905 Connectors
- Two CFH2-F Ø1″ Filter Holders Provided
- Blank Filter Holder and Variable Attenuator Insert Available Separately
- Compatible with Macro and Micro Cuvettes (Not Included, See Specs Tab for Details)
- Bottom-Located 1/4″-20 (M6) Tap for Mounting to a Post or any Mounting Base
- Light-Tight Cover Available
| Item # | FOFMF | FOFMF/M | FOFMS | FOFMS/M | FOFMS-UV | FOFMS/M-UV |
| Connector Style | FC/PC 2.2 mm Wide Key |
FC/PC 2.2 mm Wide Key |
SMA905 | SMA905 | SMA905 | SMA905 |
| Recommended Input NAa | ≤0.39 NA | |||||
| Insertion Lossb (No Filters or Cuvettes) |
≤2 dB @ 450 nm – 20 µmc | <2.0 dB @ 350 – 450 nmd <3.5 dB @ 250 – 350 nmd |
||||
| Filter Holders | Two Included (CFH2-F) | |||||
| Compatible Filter Diameter | Ø1″ (25.4 mm) | |||||
| Compatible Cuvette Dimensionse | 12.5 mm x 12.5 mm (0.49″ x 0.49″) |
|||||
| Mount Dimensions (Excluding Filter Holder) | 2.00″ x 3.31″ x 1.60″ (50.8 mm x 84.0 mm x 40.6 mm) |
|||||
| Mount Dimensions (Including Filter Holder) | 2.00″ x 3.31″ x 2.28″ (50.8 mm x 84.0 mm x 57.9 mm) |
|||||
| Tap | 1/4″-20 | M6 | 1/4″-20 | M6 | 1/4″-20 | M6 |
